There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

DC Cable H1Z2Z2-K acc. to EN 50618, are intended for use in Photovoltaic Power Supply Systems at nominal voltage rate up to 1,5/1,5kV DC.They are suitable for applications indoor and/or outdoor, in industrial and agriculture fields, in/at equipment with protective insulation (Protecting Class II), in explosion hazard areas.They may be installed fixed, freely suspended or free movable, in cable trays,conduits, on and in walls.DC Cable H1Z2Z2-K  are suitable for direct burial where the corresponding guidelines for direct burial shall be considered.

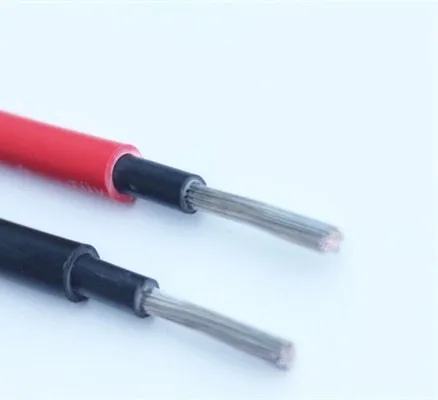

Cable Construction:

Conductor: Electrolytic tinned copper, finely stranded class 5 in accordance with IEC 60228
Insulation: Halogen-free cross-linked compound
Sheath: Halogen-free cross-linked, flame retardant compound
Insulation & Sheath Color: Red or Black
