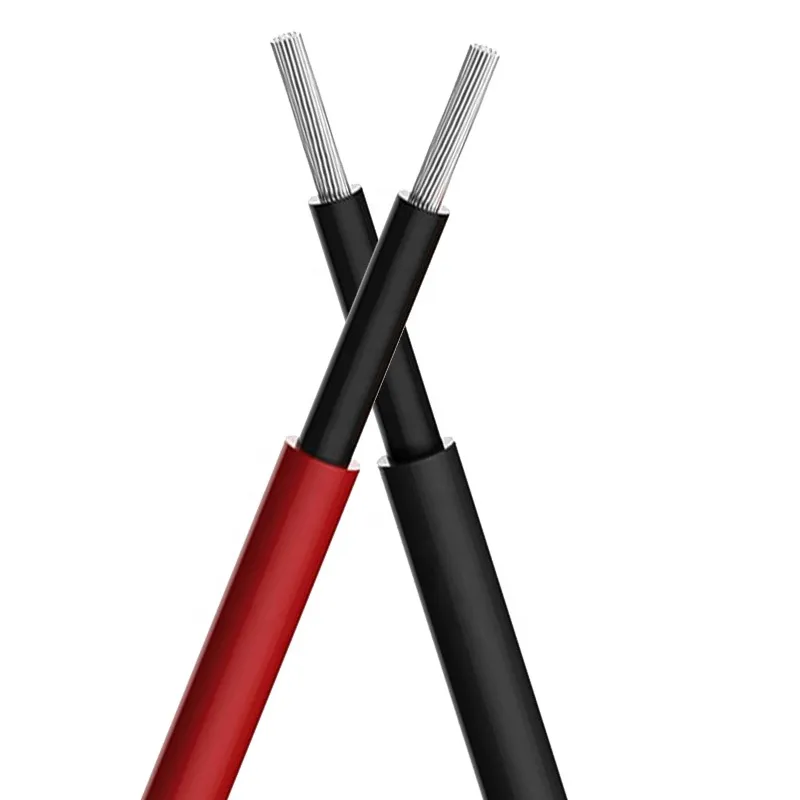

Solar cables  applies to flexible single-core cables (cords) for use at the DC-side of photovoltaic systems with a maximum permissible voltage of DC 1.8 kV (conductor/conductor, non-earthed system).The cables are suitable for use in safety class II. It is permitted to connect these cables as multiple-construction. The cables are intended to operate at ambient temperature until 90°C

Construction:
1.    Conductor - Class 5 tinned annealed stranded copper conductor
2.    Insulation - Low smoke halogen-free electron-beam cross-linked compounds (XLPO)
3.    Outer sheath - Low smoke halogen-free electron-beam cross-linked compounds(XLPO)

Cross Section:
1 core: 1.5~35mm2

Temperature characteristics:
Working temperature: -40ºC~90ºC
Max. temperature at conductor: 120ºC
Short Circuit temperature: 200ºC (at max.5sec)

Electrical Characteristics:
Rated Voltage:
AC U0/U:0.6/1kV
DC Max. : 1800V (conductor/conductor, non-earthed system)
Spark Test Voltage: 6000 V AC
5min Test Voltage: 6500V

Chemical Features:
Weather / UV Resistance
Resistance mineral oil

Color:
Insulation: Black or White or as customer's requirement
Outer sheath: Red or Black or as customer's requirement

Standard:
TUV 2PfG 1169
IEC60228, IEC60332
EN50305, EN50395, EN50396
