There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

1. Standard of PVC Cable: According to GB12706( Equal to IEC60502)Also can do by standard of ASTM,BS,DIN and AS/NZS or other standards as request.


2. Rated Voltage of PVC Cable:

0.6/1KV 6/10KV;8.7/15KV;12/20KV;18/20KV;21/35KV;6/35KV

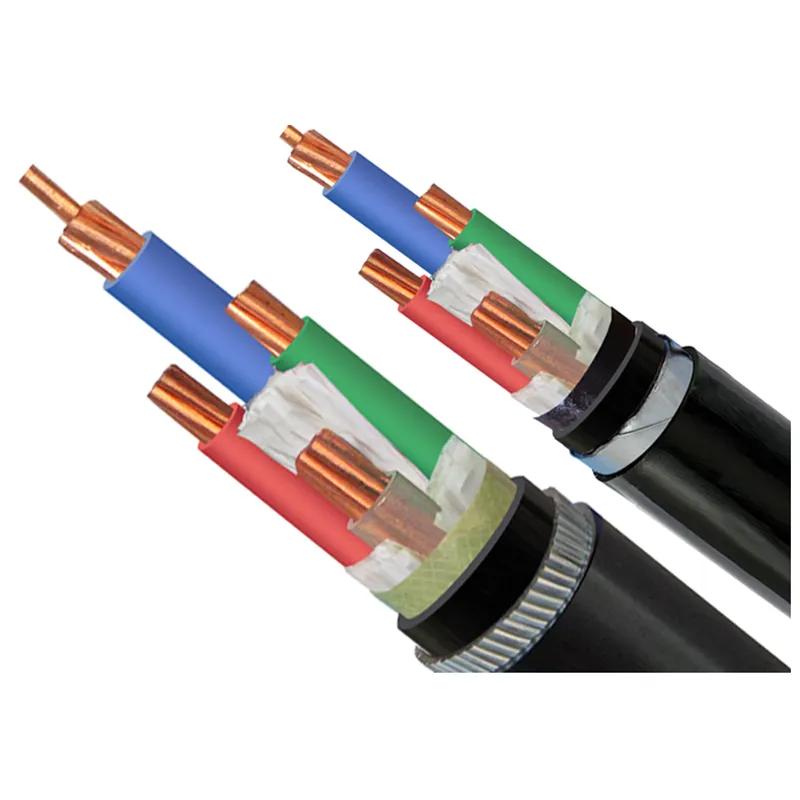

3. Construction of PVC Cable:

Conductor:Copper or Aluminum

Insulation:XLPE

Inner sheath:PVC or PE

Armoured:Galvanized steel tape,Galvanized steel wire

Outer Sheath:PVC or PE

NO. of cable cross: 1 core(Single core),2cores(Double cores),3cores, 4cores(4 equal-section-area cores OR 3 equal-section-area+1 small section area neutral core),5cores(5 3 equal-section-area cores+2 small area neutral cores OR 4 equal-section-area +1 small area neutral cores).We provide armored type and non-armored type for the cables stated above.

Also can do according to the customer's request.


4. Characters of PVC Cable:

a.Max  Long-time operating temperature of PVC insulated cable is 90°C

b.Installing temperature of cable should not be less than 0°C

c.Max short-circuit temperature is not exceed 250°C,Not more than5 Sec.

d.Unable be laid without the limit of fall with enough mechanical pull,Single core cable can not be laid in iron tube or fixed by circled iron tools around cables
