There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

1. Description:

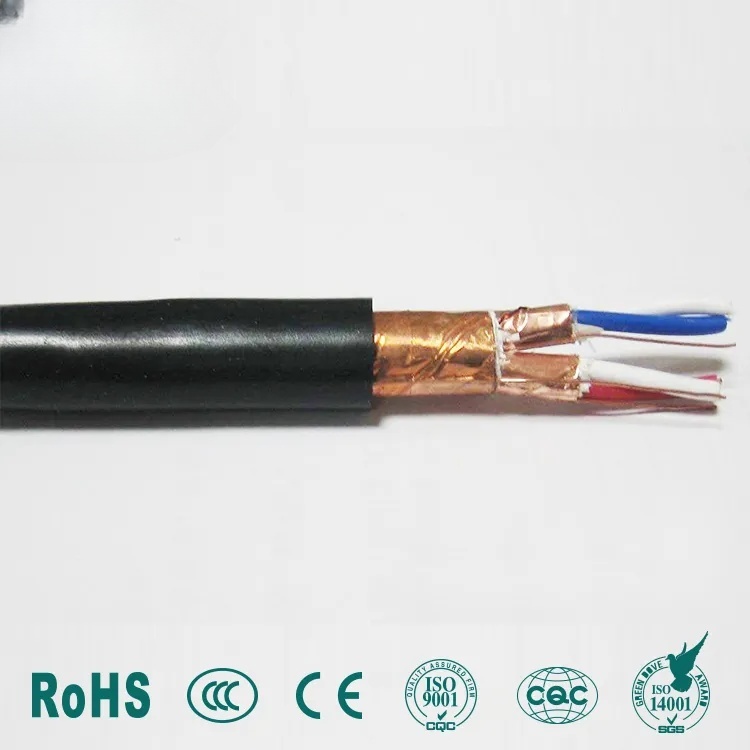

See below detail description of the construction, Flame retardant, fire resistance, low smoke zero halogen available.

2. Applications:
These cables are suitable for the interconnection between power distribution unit, widely used in controlling signaling protecting and measuring system

3. Standard:
IEC60502, IEC60332 , other standard such as: BS, DIN, AS/NZS, UL upon request

4. Technical data:
Rated voltage: 450/750V, 0.6/1kv
Max. Operating Temp of Conductor: under normal 70ºC, emergency ( 105ºC), short circuit no more than 5s (160ºC)
Min. Ambient Temperature during installation: 0ºC, after installation and only when cable is in a fixed position
Min. Bending Radius: 12x cable O.D for single core

5. Certificates:
CE, CB, RoHS, KEMA, SABS, UL, TUV, VDE, SON, SAA, SGS applied

6. Core Identification:
Black core with white numbering. OEM Color available, Green/ Yellow earthing core upon request
