There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

Voltage: 0.45/0.75KV
Model: KVV KVVR...
Product name:

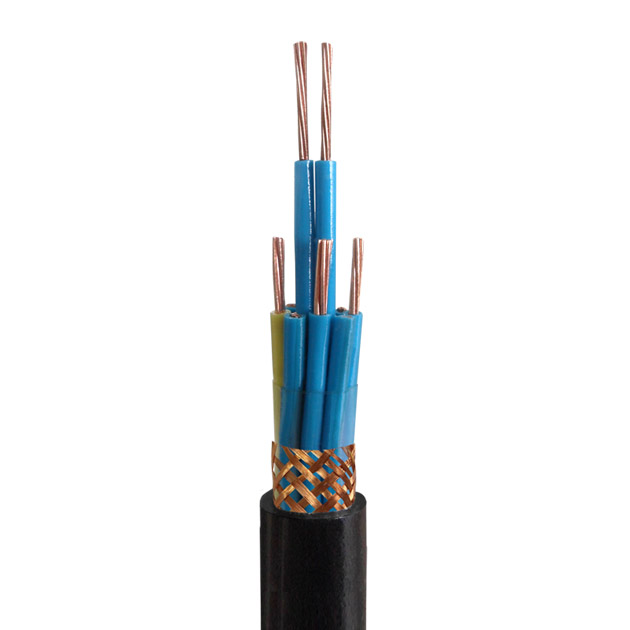

Copper Core PVC Insulated PVC Sheathed Control Cable

Applications:
Control cables are usually used as connection lines for control systems, signal transmission systems, protection and measurement systems.

Conductor allowable operating temperature:
90ºC (crosslinked polyethylene insulation), 70ºC (polyvinyl chloride insulation)
Cable laying temperature: Not lower than 0ºC.

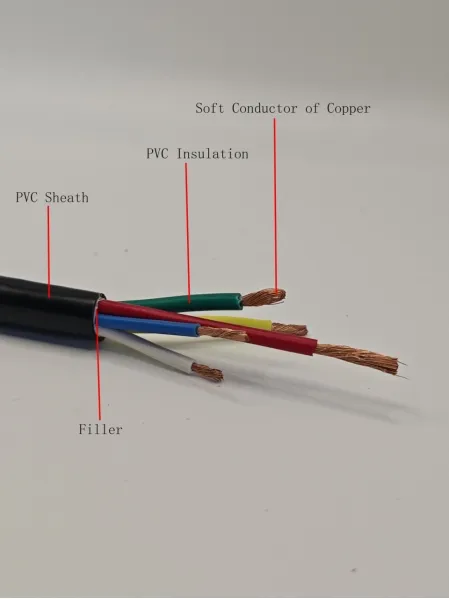

Conductor material: Oxygen-free copper/multi-strand soft core copper wire
Insulation material: PVC
Sheath material: Polyvinyl chloride
Allowable bending radius of cable installation:
(1) Unarmored cable, should be less than 6 times the outer diameter of the cable
(2) The cable with armored or copper tape shielding structure should not be less than 12 times the outer diameter of the cable
(3) The flexible cable with a shielded layer structure should not be less than 6 times the outer diameter of the cable
