There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

Application
PVC insulated wire&cable is suitable for laying at the fixed places. It is widely used in connecting of power device, lighting, daily electrical appliance, instrument etc.

Standard

The product implement the standards GB/T5023, equivalent to IEC60227. And it can also be made complying with ASTM, DIN, BS standards etc. In addition, we can design and manufacture the products as the requirements of customers.

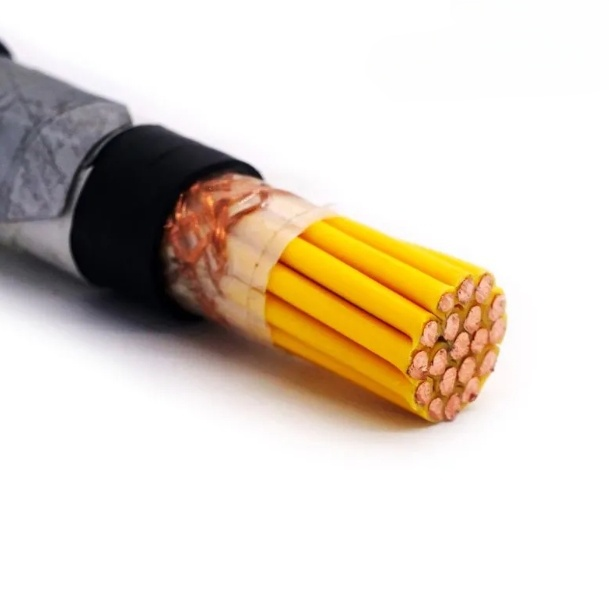

Brief construction

1) Conductor: Copper ,Stranded

2) Insulation: PVC

3) Sheath:PVC

4) Other special characteristics: Design and manufacture according to the requirements of customers.

Service performance

1) Rated voltage: 300/500V, 450/750V, 0.6/1KV 3.6/6KV 6.5/11KV, 11KV, 33KV, 66KV,

2) Long-term working temperature: not be higher than 70°C

3) When laying the cable, the ambient temperature should not lower than 0°C

4) Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm; Bending radius≥6D as cable overall diameter>25mm.

There are many types of cables, but the website demonstration is limited. If you need any cable, please contact us and we accept customization.
