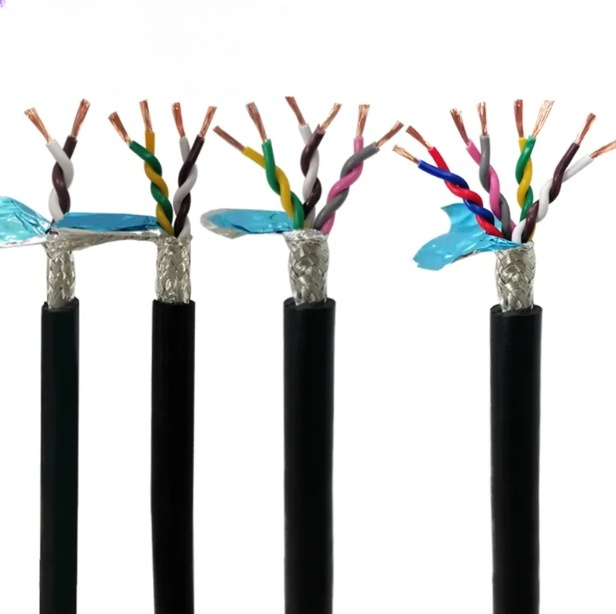

LiYCY-CY-TP is a VDE approved, flexible, overall and individual shielded, PVC multi-pair European data transmission cable. For use in flexible and stationary applications under low mechanical stress with free movement without any tensile stress, loads or forced movements in dry, moist and wet conditions. The shielded twisted pair and overall copper braid construction offer total interference-free data transfer and is ideal for use as a signal and control cable in combination with computers and external units. LiYCY-CY-TP is also well suited for use as a connecting cable found in sound studio equipment, measuring and control equipment and is highly reliable for process-control and security systems. Not permitted for outdoor use.


Construction:
Fine bare copper strands
Strands to VDE-0295 Class-5, IEC 60228 Cl-5
Special PVC core insulation
Color code DIN47100 - with color repetition
Individual tinned copper braided pairs
PVC inner jacket over pairs
Plastic foil separator
85% tinned copper braid
PVC outer jacket - gray (RAL 7001/7032)
Extremely oil resistant
Technical:
Working voltage: 350/500 volts
Testing voltage: 1200/2000 volts
Flexing bending radius: 12 x Ø
Static bending radius: 6 x Ø
Flexing temp: -5º C to +70º C
Static temp: -40º C to +80º C
Flame retardant: IEC 60332.1
Insulation resistance: 20 MΩ x km
Approvals:
VDE-0812 & 0814
CE Low Voltage Directive 2014/35/EU
RoHS compliant
