Application scope; suitable for travelling cranes, cranes, harbour machinery, power plant bucket turbine equipment, construction sites and shipyards lifting equipment fixed and mobile installations Sewage treatment plants, steel mills and elevated warehouses.

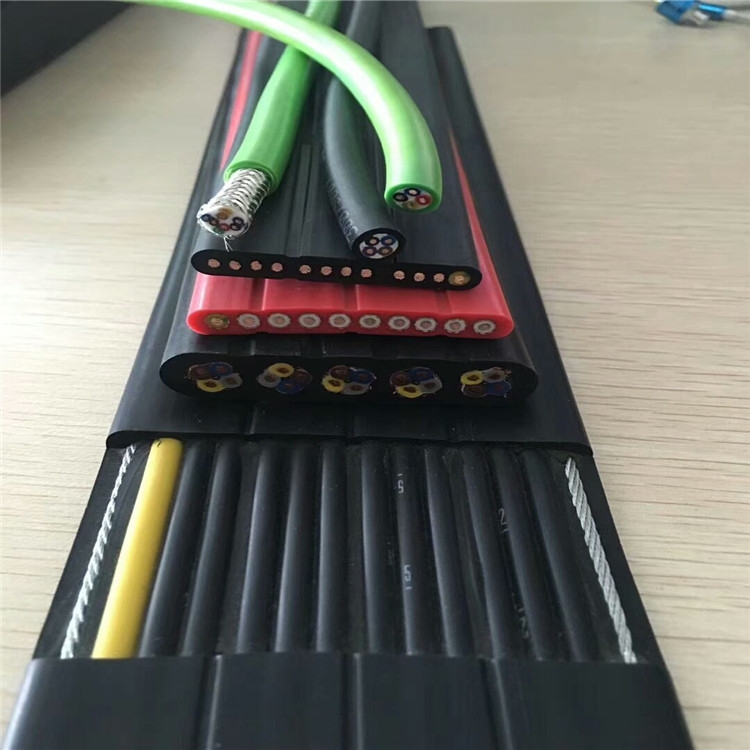

Basic description

Conductor: Multi-stranded fine stranded oxygen-free bare copper wire Conforms to VDE0295 CLASS 5 or 6.

Insulation: Special blend of elastomer nitrile flexible insulation.

Construction: One-piece arrangement or plum blossom arrangement

Reinforcement: galvanised soft steel wire rope (for free hanging over 80 m) or fibre aramid yarn (optional).

Sheath: special mixed elastomer nitrile sheath, black (RAL 9005) or grey (RAL 7001)

Technical data

Rated voltage: U0/U 450/750V~0.6/1KV

Test voltage: 3000V

Bending radius: fixed laying 8XD (minimum cable edge); mobile installation 10XD (minimum cable edge)

Operating temperature: fixed laying -35℃~+80℃; mobile installation -20℃~+80℃ (if there is a special temperature, please call for advice)

Flame retardant: conform to IEC60332-1

Oil and chemical resistance: see Shanghai Eine flat cable parameter schedule

Ordering instructions

Core wire grounding marking: G=with yellow/green two-colour grounding protection core wire, X=without yellow/green two-colour grounding protection core wire.
Standard length: (100,200,300,500,1000)
Packing: ≤30kg in rolls, >30kg in trays.
Please specify the packing specification when ordering (e.g. 1×500m in tray or 5×100m in roll).

Application

Particularly suitable for installation in indoor environments, can be used for conveying equipment, lifting machinery and transport equipment, or mobile machinery components, such as the connection of the installation.

It can be used for tracked trolley, trolley, transmission machinery, lifting crane and all kinds of flaw detection equipment, also can be used for installation of self-supporting shaft or tilting shelves, power transmission line, and control, lighting, communication lines.

Flat cable has the characteristics of anti-climate change, can ensure the normal work of the equipment in the harsh environmental conditions.

Advantages

Compared with round cable, flat cable has the advantages of saving space and cost, and in the case of the same number of core wires, its bending radius is smaller than that of round cable.

Flexibility is maintained at low temperature; low viscous appearance, non-stick installation.

Stable tensile and tear resistance; good oil resistance, abrasion resistance, cold resistance and weather resistance.

Can be designed and customised to produce acid, alkali and salt spray corrosion-resistant series flat cables.
