There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

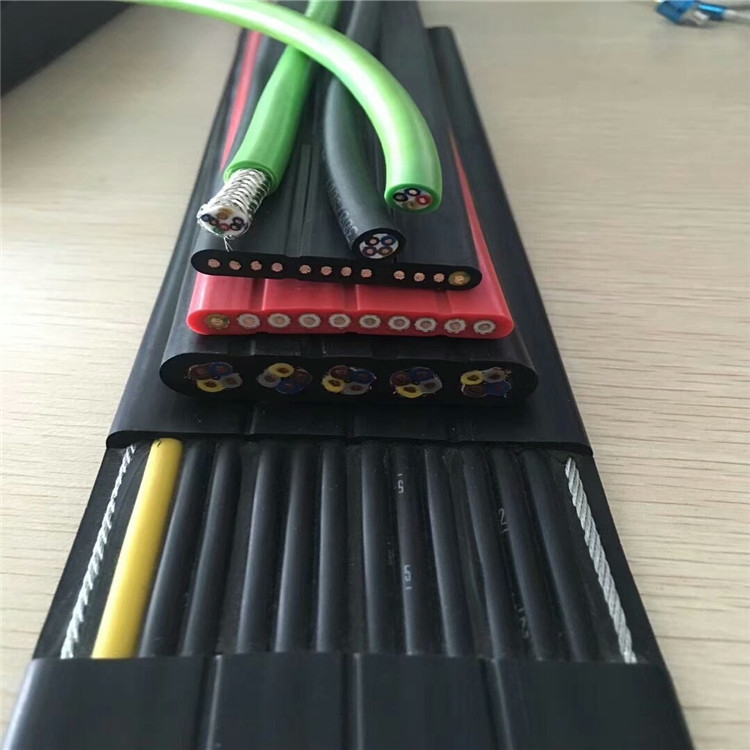

Used for power, control, lighting, communication, and other wiring of mechanical equipment such as cranes, trolleys, and hoists

Conductor: finely twisted oxygen free bare copper wire, compliant with VDE0295CLASS 5 or 6 standards
Insulation: Special nitrile mixed insulation
Core arrangement: ≤ 24 cores: straight line arrangement ≥ 24 cores: plum blossom arrangement
Reinforcement (optional): Two galvanized soft steel wires (for free suspension exceeding 80 meters) or fiber aramid yarn (optional)
Sheath: Special Mixed Characteristics Nitrile Sheath Black (RAL9005) Grey (RAL7001)
Rated voltage: Uo/U 450/750V
Test voltage: 2500V
Usage temperature: Mobile installation: -20 ℃ to+70 ℃ Fixed installation: -40 ℃ to+70 ℃
Small bending radius: Mobile installation: 10xD (cable outer diameter) Fixed installation: 8xD (cable outer diameter)
