There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

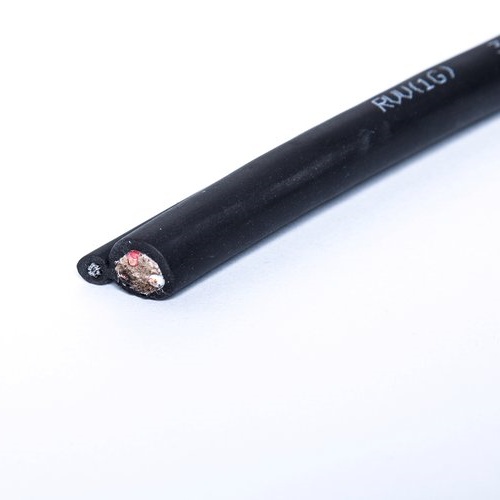

The driving handle control connection cable is used as a control, contactor, handle button connection, and control cable for driving electric hoists, and is suitable for various electrical installations indoors in dry or humid conditions. Given the special flexible structural design of self-supporting steel cable, it is also suitable for installation or fixed laying under left and right discontinuous movements that can be forcibly guided without stress relief (not used for elevator cable up and down lifting)
Conductor: Multi strand precision twisted oxygen free bare copper wire meets VDE0295 CLASS 5 or 6 standards
Insulation: High quality mixed elastomer nitrile material soft insulation
Color identification: Colored core wire or black wire body with white numerical number, 3 or more cores with yellow/green dual color grounding wire
Reinforcement: Multiple strands of yellow hemp rope filling, one or two torsion free self-supporting steel wires bearing the operating tension.
Core wire structure: Anti twist structure layered
Inner lining layer: Flexible non-woven fabric wrapped around the line body for buffering
Sheath material: special mixed weather resistant elastic nitrile material
Sheath color: Black (RAL9005) Grey (RAL7001) Orange (RAL2003)
Rated voltage: ≤ 1.5mm ²: 300/500V,>1.5mm ²: 450/750V
Test voltage: ≤ 1.5mm ²: 2500V,>1.5mm ²: 3000V
Minimum bending radius: Fixed laying: 10 × D (cable outer diameter)
          Mobile installation: 12 × D (cable outer diameter)
Usage temperature: Fixed installation: -30 ℃ to+80 ℃;
        Mobile installation: -20 ℃ to+80 ℃ (customizable -55 ℃ to+105 ℃)
Radiation resistance intensity: 8 × 107cJ/kg
Flame retardancy: Complies with IEC60332-1 or -2
