Technical Data

- Approval:Uu/cul approved, UL-Style 20233

· Production: In accordance with VDE standards

·Temperature range:
Fixed installation: -40 ºC ~ +105 ºC
Flexible: -30ºC ~ +105ºC

· Nominal voltage: 300 V

·Test voltage: 2000V

· Minimum bending radius: Approx 7.5 cable diameter (for flexible installation)

· Traversing speed: Max.3.3m/s for 5 m of horizontal traverse path length

· Acceleration: max. 5 m/s²

· Flexing and torsion cycles: min.10 million.

· Torsional stress: +/-360 /m

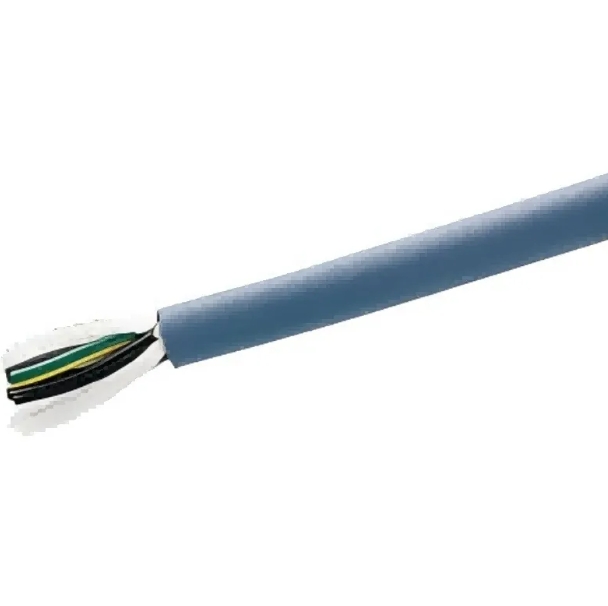

Cable structure
Assembiy(3-pin)

· Bare copper litz wire
· Core insulation TPE
· Cores stranded in layers
· -D-screen: screened version for robot
application
· -C-screen:in drag chain systems
· Sheath, special mix
· Weld splatter resistant, dull, low adhesion, flame retardant and self-extinguishing according (to DIN VDE 0472 part 804 test method B, IEC 60332-1)
· Sheath colour: see below

Properties
· Very good resistance to oilas per DIN EN 60811-2-1
· Good resistance to acids, alkalis and solvents
· Not cross-linked
· Weld splatter resistant
· Recyclable
· The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers.
· Free of substances harmful to paint adhesion Substances
· Very high mechanical load capacity
· Abrasion resistant
· Wear-resistant
· Highly flexible
· UV-resistant

Application
The cable is a PVC, high flex, heavy-duty, oil-resistant, continuous flex multi-conductor cable designed for use in
the machine tool industry, robotics, machine production and drag chains where high flexibility is essential.
Suitable for use in flexible and stationary applications under medium mechanical stress with free movements in dry,
damp and wet areas. Applications include gantry robots, cable tracks, power chains, connection cables, pick and
place units, automated handling equipment, conveyor systems and applications that require a small bending radius.
Designed and qualified for a service life of at least 5 million alternating bending cycles in power chains. Outdoor
installation is not permitted.
