Application:
It is suitable for dry or wet roomsand installation without strong stress or free continiuous reciprocating movement. It is also can be used in working places of Woodworking Machine, machine tool equipment, logistics conveyer system, crane and other related equipments.For the short pitch, it has excellent crosstalk resistance property.

Properties:
Waterproofing; oil resistance; cool resistance;abrasion resistance; flame resistance.anti-ultraviolet. Bending for life:above 5,000,000 times.

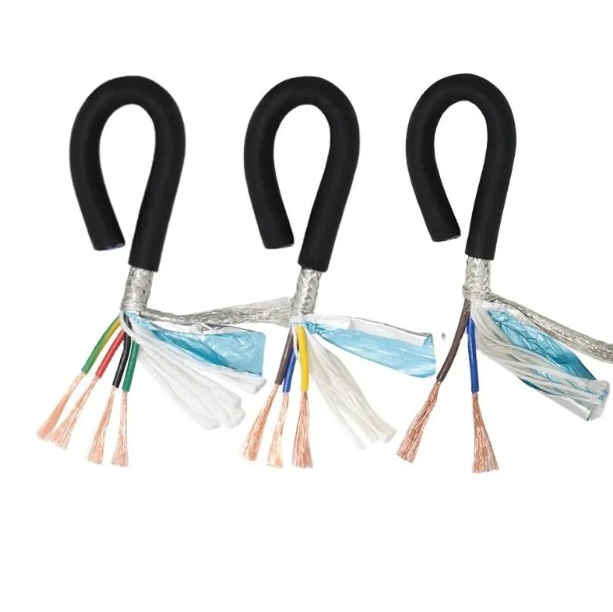

Structure:
Conductor: multiple strands of sperfine stranded anaerobic copper wire
Insulation: special mixed PVC insulation
Shielding: tinned copper mesh woven shielding, density of more than 80%
Sheath: special modified PVC sheath Black, Gray, Orange
Rated voltage: section<0.5mm squared: 300/500V
Test Voltage: 2000V
Using the temperature range: fixed installation: - 30ºC to +90ºC
Mobile installation: -5ºC to +90ºC
Minium bending radius: fixed installation: 5× cable outer diatmeter
Mobile installation: when the stroke is less than 10 meters, the bending radius is 7.5 ×d
When the travel is greater than or equal to 10 meters, the bending radius is 10 ×d
