Highly flexible pairs of stranded wire manufacturer, focusing on the field of highly flexible cables, factory direct sale, quality assurance.

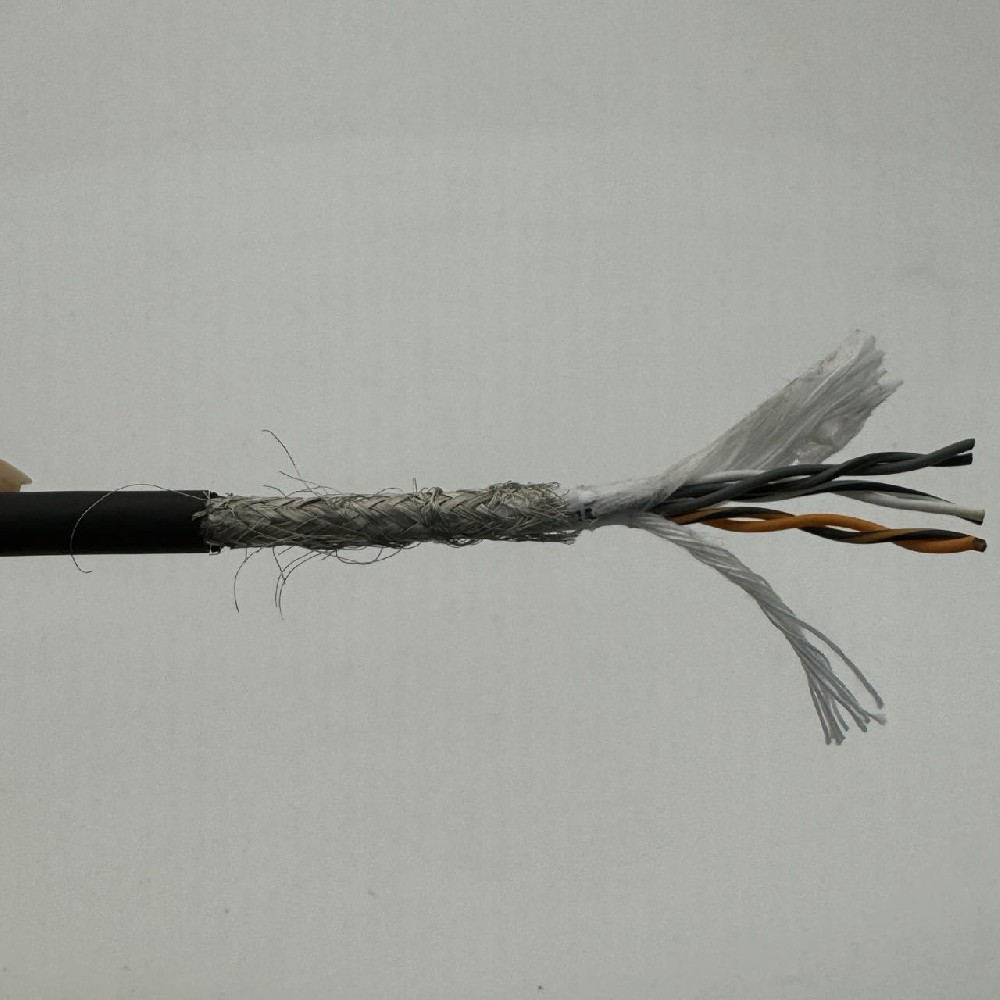

Highly flexible pairs of stranded cables are used for occasions that require frequent continuous repetitive movements, and are also suitable for situations where there is free movement with moderate mechanical stress.

Pair twisted cable is more suitable for the occasions that are easy to be interfered by the signal, the cable adopts the pair twisted structure, which can effectively reduce the interference between the pairs of wires, and ensure the stable transmission of data and signals.

Highly flexible twisted pairs of cables are used in drag chains and moving mechanical parts, and are more effective when used in conjunction with drag chains.

Composition

Conductor: fine oxygen-free bare copper wire, multi-stranded soft conductor, in line with GB/T3956 (VDE0295/IEC60228) 60228 Class5 or 6 standards.
Insulation: high-strength modified PVC or PE materials with excellent insulation and electrical properties, colour differentiation, no repetition (can be customized according to customer requirements)
Cable formation: short pitch stranded, 12 cores and above using composite cable structure.
Sheath: High strength and low viscosity special PVC composite material;
Sheath colour: grey (default), black, orange, green (other colours can be customised according to customer requirements).
Technical Parameters

Rated voltage: <0.5mm2, 300/300V; ≥0.5mm2, 300/500V
Test voltage: 0.14mm2: 1200V, >0.14mm2: 1500V
Insulation resistance ≥20MΩ/km (20°C)
Zui small bending radius: mobile use: 7.5X cable O.D., fixed installation: 4X cable O.D.
Temperature range: Mobile use: -5°C~70°C, Fixed installation: -20°C~80°C

Ask
What is the reason for the twisting and deformation of the cable in the drag chain?

Answer
There are 3 main reasons for the twisting and deformation of the cable inside the drag chain. Firstly, the cable inside the drag chain is not a real drag chain cable; secondly, the cable inside the drag chain is not properly selected; thirdly, the cable inside the drag chain is not properly installed according to the requirements.

Ask
What is the relationship between the national standard drag chain cable and the national standard cable?

Answer
There is no definition of ‘drag chain cable’ in cable terminology, so there is no national standard drag chain cable. There are many national standards for wires and cables, although there is no national standard specifically for drag chain cables, but in the process of producing drag chain cables, you can still draw on the existing national standards for cables. Therefore, even if it is not a national standard trailing chain cable, it can still be a national standard cable.
