Highly flexible twisted shielded cable manufacturer, focusing on the field of highly flexible cables, factory direct sale, quality assurance.

Highly flexible twisted shielded cable is used for occasions that require frequent continuous repetitive movements, and is also suitable for situations where there is free movement with moderate mechanical stress.

Shielded twisted pair cables are more suitable for occasions prone to signal interference, the cable adopts a twisted pair structure, which can effectively reduce the interference between the pairs of wires believed to be braided shielding so that the cable has a strong resistance to external electromagnetic interference, to ensure the stable transmission of data and signals.

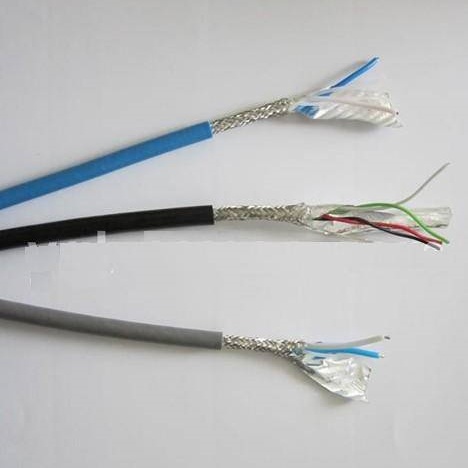

Shielded cable with braided shielding, high-density shielding layer ensures interference-free transmission of signals and pulses.

Highly flexible twisted shielded cables are used in drag chains and moving mechanical parts, and are more effective when used in conjunction with drag chains.

Composition

Conductor: fine oxygen-free bare copper wire, multi-stranded stranded flexible conductor, in accordance with GB/T3956 (VDE0295/IEC60228) 60228 Class5 or 6 standard.
Insulation: high-strength modified PVC or PE materials with excellent insulation and electrical properties, colour differentiation, no repetition (can be customized according to customer requirements to produce)
Cable formation: short pitch stranded, 12 cores and above with composite cable structure.
Shielding: copper mesh braided shield, braiding density ≥ 85%.
Sheath: high strength and low viscosity special PVC composite material;
Sheath colour: grey (default), black, orange, green (other colours can be customized according to customer requirements).
Technical parameters

Rated voltage: <0.5mm2, 300/300V; ≥0.5mm2, 300/500V
Test voltage: 0.14mm2: 1200V, >0.14mm2: 1500V
Insulation resistance ≥20MΩ/km (20°C)
Zui small bending radius: mobile use: 7.5X cable O.D., fixed installation: 4X cable O.D.
Temperature range: Mobile use: -5°C~70°C, Fixed installation: -20°C~80°C

Ask
Is RVVYP a drag chain cable?

Answer
RVVYP is not a drag chain cable, the full name of RVVYP is oil-resistant PVC sheathed shielded flexible cable (60227 IEC 74), the implementation of national standards GB/T5023-2008.

Ask
Can I judge whether the drag chain cable is good or bad by the thickness of the copper wire of the conductor?

Answer
It can be said for sure that it can't. The thickness of conductor copper wire has some influence on the flexibility of the cable, and the good or bad of the drag chain cable is not decided by the thickness of conductor copper wire. For example, some unscrupulous manufacturers may use thin and low quality copper wires to mislead consumers, while in fact the other aspects of the cable quality is very poor; some high-quality drag chain cables may be through the optimisation of the design and materials, in the case of copper wire thickness is not particularly prominent, but still can show excellent performance.
