There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

Voltage: 0.45/0.75KV  0.6/1KV
Model: BBTRZ BTTRZ (YTTW) BTLY (NG-A) BTTZ/BTTYZ...

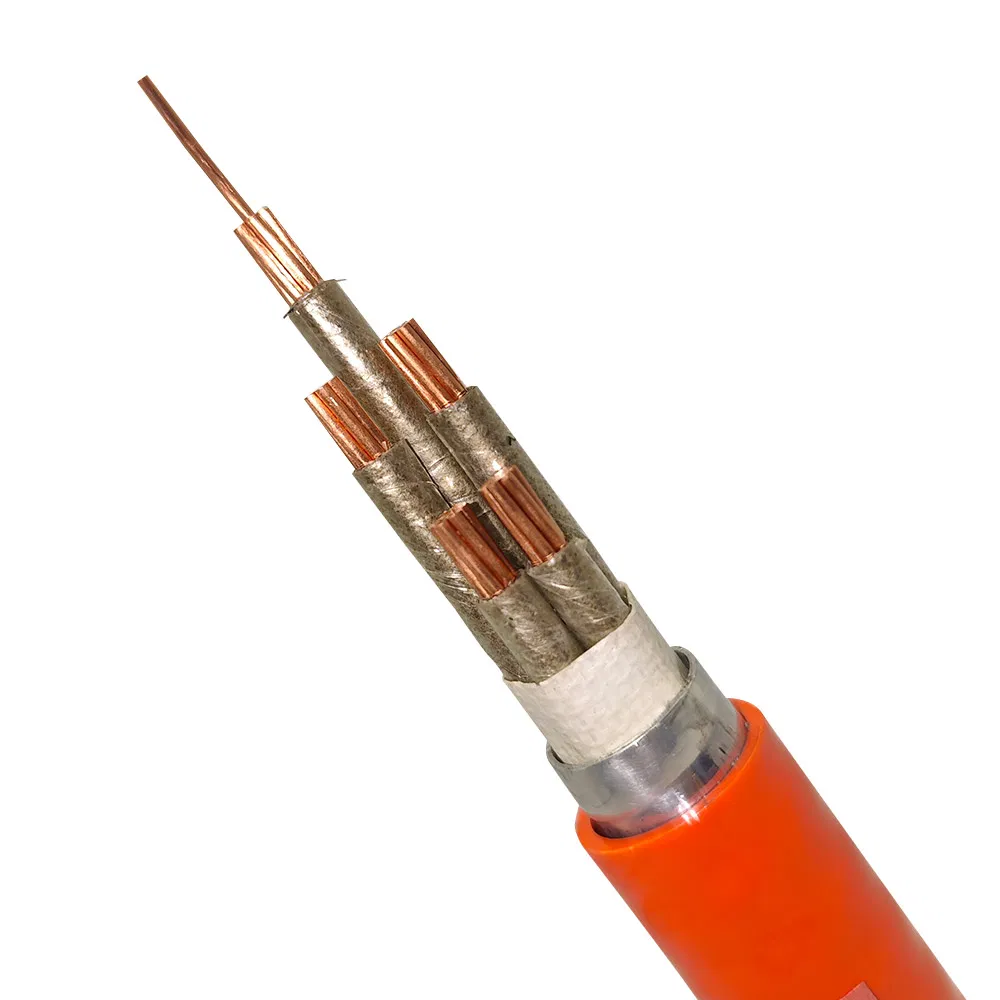

Product name: Mineral fireproof cable

Product Introduction:
Fireproof cables are suitable for lines with rated voltage below 1000V. The continuous working temperature of this cable is 250ºC, the power supply can be sustained for 3 hours at 950ºC-1000ºC, and the melting point of copper can be close to 1083ºC in a short time or in an extraordinary period.

Applications:

1. Important power supply facilities

2. Lighting power supply system for crowded places

3. Places with high temperature environment

4. Fire-control power supply in buildings

5. Inflammable and explosive places

6. Power supply for railway transit

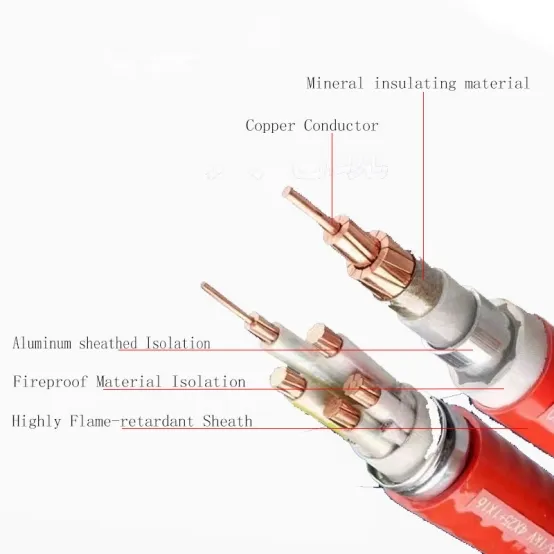

Conductor: Oxygen-free Copper
Outer sheath: Halogen-free Low Smoke Polyolefin
Insulation layer: Mg(OH)2 Mineral/Refractory Glass Fiber
Insulating material: Inorganic Mineral/Mica Tape
Color: Standard color (can be customized)
Specification: 4mm2-300mm2
