There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

Application

used in rail travelling crane, trolley,conveyors,tower crane and a variety of inspection equipments,installation for self supporting wells and storage rack, suitable for power transmission, control, lighting, communications lines.

Product Description

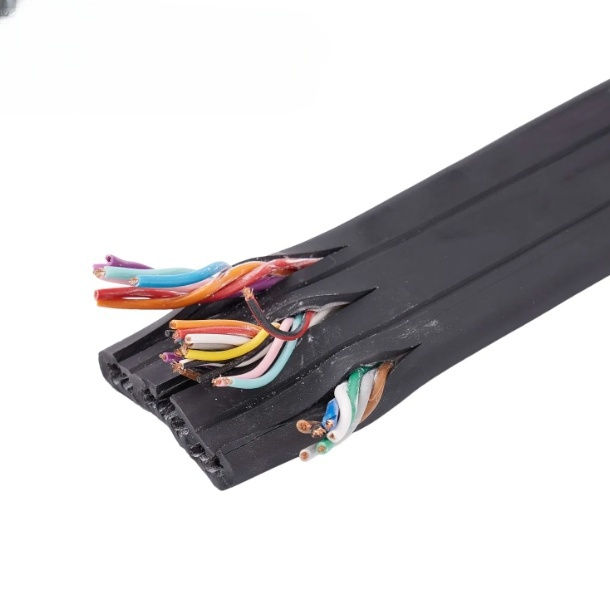

Flat Series Cable is special designed for frequent motion and flexing.  This cable
can be used for festoon systems, power tracks, cable tenders, cranes and hoists.

Sheath:  PCP Rubber
Conductor: Superfine Soft Bare Copper which purity can reach 99.999%.
Insulation: EPR Rubber


Technical parameters

Rated voltage: ≤1.5mm2 300/500V     >1.5mm2:  450V/750V
Test voltage:   ≤1.5mm2 2500V          >1.5mm2:  3000V
Temperature range: -20°C to +80°C

Product Features

1.Tensile and tearing resistance, stable performance
2.Good oil resistance, abrasion resistance, cold resistance and weatherability
3.in line arrangement: freedom use length less than 35m,moving speed less than1.6/S
4.plum flower arrangement:freedom use length less than 80m,moving speed is 4-10m/s
