Application

Implementation of the standards:JB/T6213-2006
Uses: This product is suitable for directly and permanently connected to the motor windings and leads the cabinet or terminal windings on the motor housing connected by lines.
Conditions of Use
1,Rated voltage to 500v,1000v,3000v,6000v,10000v.
2,The continuous operation of the cable (wire) conductor highest temperature of 70 ° C or 90 ºC.
3,Laying of cable (wire) allows bending radius should not be less than the outer diameter of the cable (wire) 4 times.

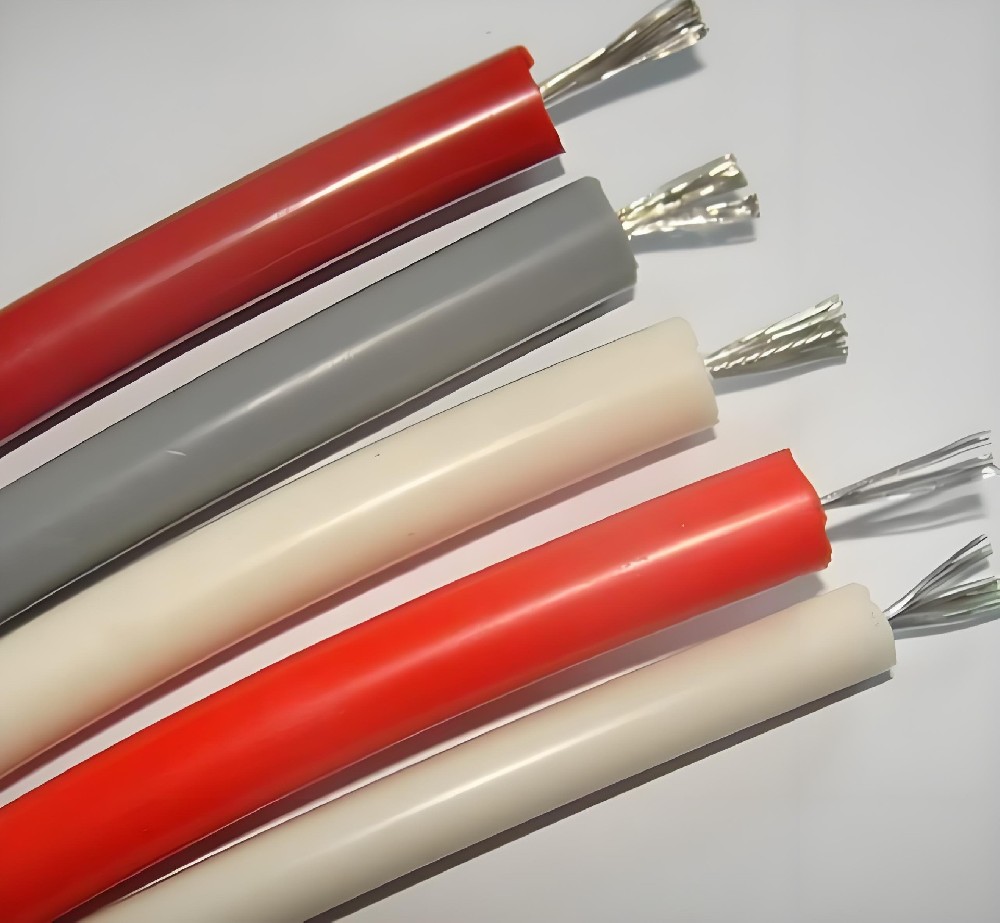

JG silicone insulated cable 4.0MM2 with DW20
Rated voltage:500v/1000v
temperature range:-60~+180
conductor:tinned,nickeled,silver plated,bared copper
insulation:silicone rubber
section:4.0mm2
construction of conductor:56/0.3
