Description:

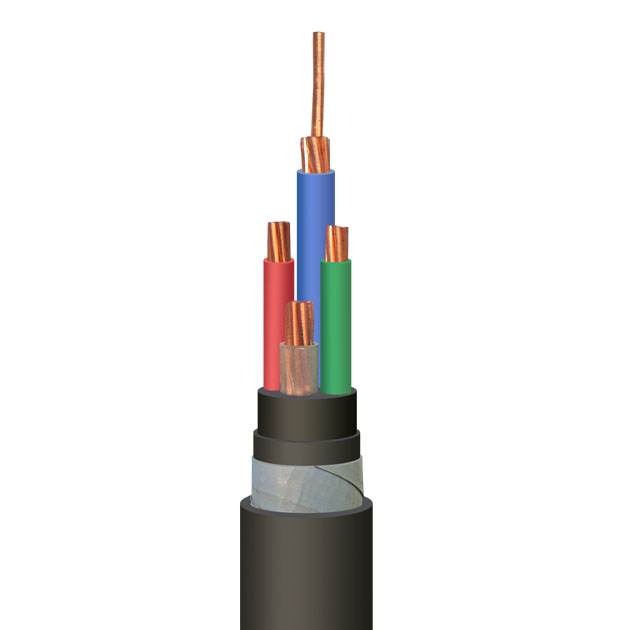

0.6/1kv XLPE Insulated Electric Power cable

CU/XLPE/PVC, IEC 60502

IEC 60502, IEC 60228, GB/T 12706.1-2008.

CE, CCC, KEMA. ISO

Constructions

Conductor      : Compact stranded copper conductor, Cl.2 as per IEC 60228

Insulation      : XLPE(cross-linked polyethylene) rated at 90 ºC

Sheath         : PVC type ST2 to IEC 60502, black

Note: Insulation color as per standards or customer requirement

Applications

For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.

Standards

International: IEC 60502, IEC 60228

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage: 0.6/1kV

Max. Conductor Temp.: normal (90ºC), short circuit no more than 5 s (160ºC when section-area below 300mm2, 140ºC when section-area above 300mm2)

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0ºC

Min. Bending Radius: single core cable 20(d+D)±5%

                    Multi-core cable 15(d+D)±5%

Certificates

CE, RoHS, CCC, KEMA and more others at request
