1. Standard

IEC 60502, 60228, 60332, 60331

DIN VDE 0276-620

HD 620 S1: 1996

DIN EN 60228 class 2 (construction)

2. Application

This cable is used for fixed installations, such as distrubution networks or industrial installations. It can be installed in

cable duct, trench or directly buried in earth.

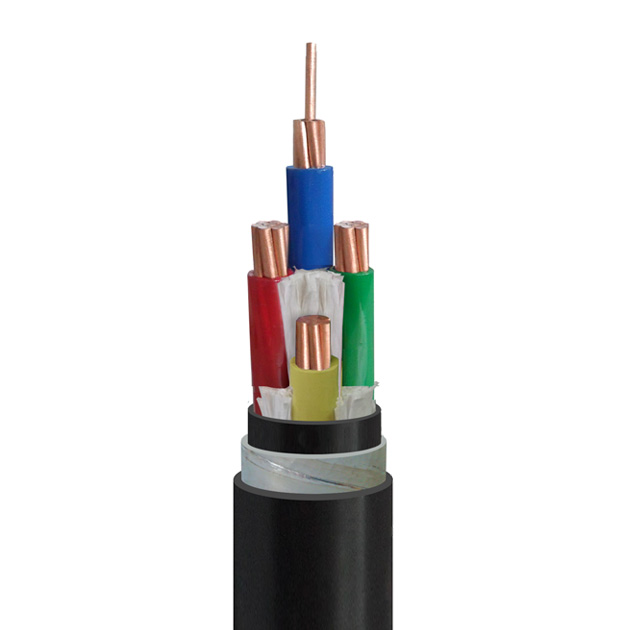

3. Product Description

1) Rated Voltage: 0.6/1KV 3.6/6KV 6.5/11KV, 11KV, 33KV, 66KV, 132KV

2) Max. working temperature: 90 °c

3) Max. temperature during short circuit (≤5S): 250 °c

4) Conductor: class 1, 2 copper or aluminum

5) Sectional area: 25 - 630mm2

6) Insulation: XLPE

7) No. of cores: 1, 3

8) Armor: steel wire or steel tape for 3 core cables and non-magnetic material for single core

9) Oversheath: PVC

10) Min. beding radius: 15 times cable radius for single-core cables and 12 times for multi-core ones

11) Max. conductor DC resistance at 20°c:
