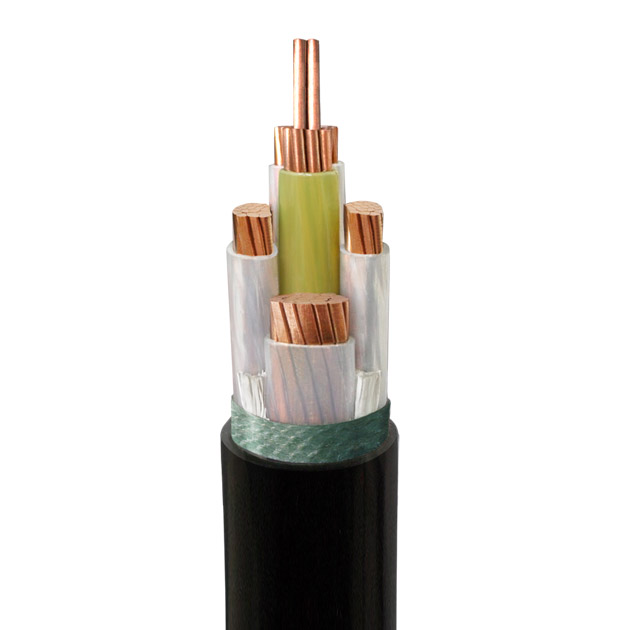

XLPE/PVC Insulation LV (Low Voltage) Power Cable

1.XLPE/PVC Insulation LV (Low Voltage) Power Cable  cable belongs to cables rated voltage up to 1KV. They are used for laying indoor, tunnel, underground, canal, water and seabed, etc .

Standard available such as ASTM , BS , DIN ,NFC , AS/NZS , CSA , IS , etc.

2.Brief Construction:

2.1 Number of Core : 1Core , 2Core,3Core , 4Core , 5Core , 3+1Core(3.5Core) , 3+2 Core , 4+1Core , etc.

2.2 Conductor material: Copper or Aluminum (Stranded Round /Stranded compacted round/stranded compacted sector)

2.3 Insulation Material: XLPE/PVC/PE/LSHF

2.4 Inner sheath (applicable if there is armour layer): PVC/PE

2.5 Armour layer (if required) :Galvanized steel wire / Steel Tape

2.6  Outer sheath :  PVC/PE

3.The max. conductor long time permissible operating temperature is 70 degree for PVC Insulation and 90degreefor XLPE Insulation ; In short circuit, max. Temperature is 160 degree for PVC Sheath and 250degreefor PVC Sheath.
