CABLE MODE
H07RN-F    450/750V

APPLICATION
These cables are designed to provide high flexibility and have the capacity to withstand weather, oil/grease, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audiovisual equipment, port areas and dams. Also for use in drainage and water treatment, cold environments and severe industrial environments.

PRODUCTS STANDARD
EN 50525-2-21, EN 60228
Flame Retardant according to IEC/EN 60332-1-2
Water Resistant according to AD7


CHARACTERISTICS
Voltage Rating U/Uo   450/750V
Temperature Rating    Operating: -40°C to +60°C   Minimum installation and use temperature: -25°C
Maximum temperature of short circuit: +200°C
Minimum Bending Radius   Fixed: 4 x overall diameter

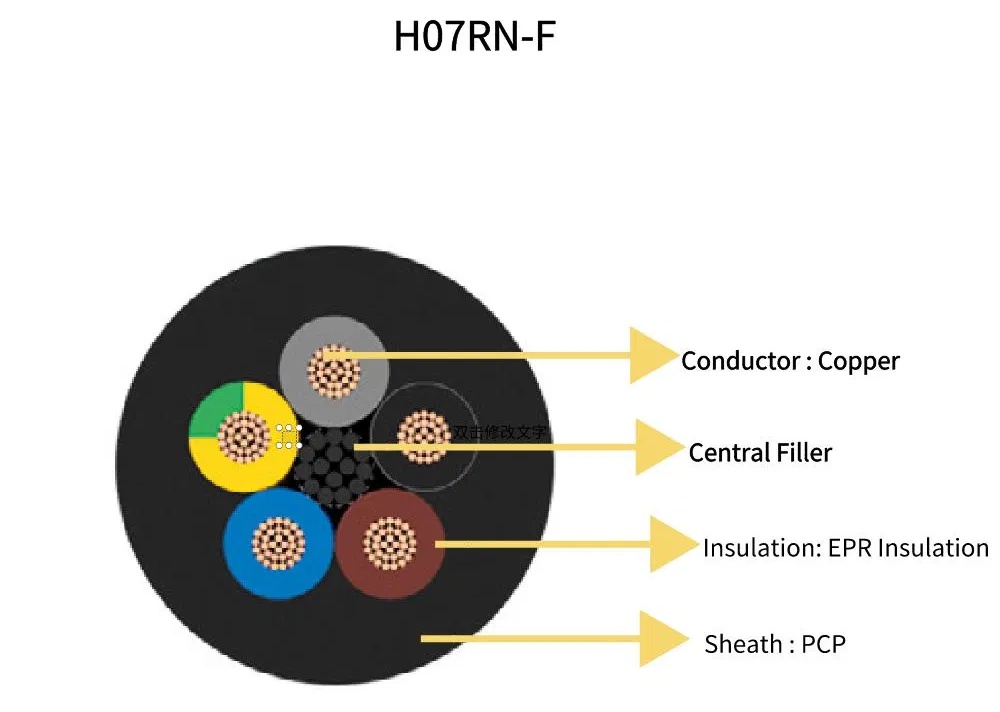

CONSTRUCTION
Conductor    Class 5 flexible copper conductor
Insulation      EPR (Ethylene Propylene Rubber) EI4
Sheath         PCP (Polychloroprene) EM2

Core Identification
1 core:   Black
2 core:     Blue    Brown
3 core:     Green/Yellow Blue     Brown
4 core:    Green/Yellow  Brown    Black  Grey
5 core:    Green/Yellow  Blue    Brown    Black  Grey
6 core and Above :    Black with  White Number  Green/Yellow

Sheath Colour
 Black
