There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

Widely applicable for power supply in cable conduits, power stations, industrial and distribution facilities, as well as user networks. It can also be used in brick walls and concrete, but cannot be affected by high-frequency mechanical forces such as vibration, sway, torsion, and reciprocating bending movement. Can be installed and laid in outdoor, underground, and outdoor environments.

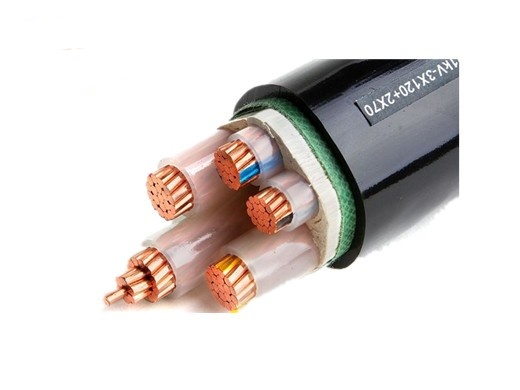

Conductor: Bare copper wire stranded conductor, complying with the requirements of Class 1, 2 or 5 conductors in EN60228 standard

Insulation: Special PVC insulation material that meets the requirements of EN50363-3 standard

Core wire identification: using different colors for identification, optional green/yellow grounding wire

Outer sheath: Special PVC sheath material that meets the requirements of EN50363-4-1 standard

Rated voltage: 0.6/1kV

Test voltage: 4000V

Operating temperature: Mobile installation -5 ℃ to+70 ℃

      Fixed installation -20 ℃ to+70 ℃

Minimum bending radius: 12 x cable diameter Ø
