There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

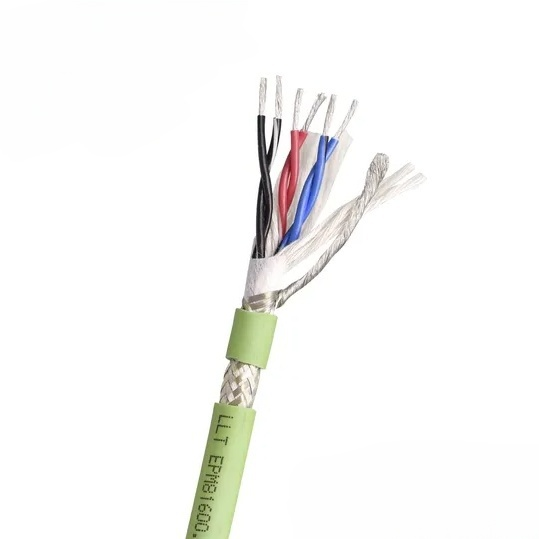

This cable is designed specifically for applications that require high bending and continuous motion, and is widely used in drag chain systems, robots, and mobile drive systems. The outer sheath material is wear-resistant,

The anti hydrolysis, antibacterial, flame-retardant and other characteristics of this cable maximize its advantages in the drag chain system.

Twisted shielded data cable

Conductor VDE02956 class

Special low viscosity PVC mixture for insulation layer

Special tensile strengthening core

Inner sheath high elasticity PVC mixture

Yellow green grounding wire

Tin plated copper wire braided shielding layer optical summer cover 90%

Special low viscosity wear-resistant PVC mixture for outer sheath

Voltage: 0.6/1kv

Test voltage: 3500V/5min (AC) minimum bending radius

Fixed laying: 5x cable outer diameter

Mobile installation: 7.5x cable outer diameter temperature range

-20 ° C~80 ° C Solid application temperature: Moving temperature: -15 ° C~80 ° C Oil resistance: Normal

Weather resistance: UV resistant. Suitable for indoor use. Flame retardant properties: Complies with IEC60332-1 maximum moving speed

Overhead speed: 3m/s

Sliding speed: 2m/s

Acceleration: 20m/s2
