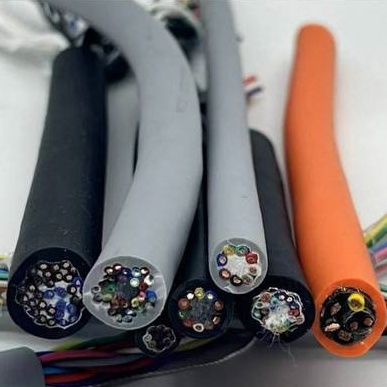

There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

Widely used in automation information systems, sensor systems, and other applications as electromagnetic signal transmission. Used as low capacitance cables, primarily for precise data and signal transmission in drag chain control systems, loading and unloading equipment, and machines and control engineering in robots. It can be used both indoors and outdoors. The additional core wire ensures the power supply for each component. The overall copper wire shielding ensures precise signal transmission and protects the cable from electromagnetic interference. PUR outer sheath is flame retardant and self extinguishing (compliant with DIN EN 60332-1-2 VDE 0482332-1-2:2005-06 standards), non adhesive, resistant to hydrolysis and microorganisms, extremely tear resistant and wear-resistant.

Conductor: Fine twisted ultra-fine bare copper wire

Insulation: Polypropylene (PP) core wire insulation;

Core wire color: The core wire color complies with DIN 47100, and the core wire color repeats from 0.5mm2

Shielding: Twisted core wires into cables, tinned drain wires, tinned copper wire shielding

Sheath: PUR outer sheath,

Outer sheath color: green.

Rated voltage: 300V/500V
Test voltage: 2000 V
Conductor twisting method: Ultra fine copper wire twisting;
Working capacitance: 800Hz
Temperature range:

  Fixed installation -50 ° C to/to+80 ° C
  Mobile applications -40 ° C to/to+80 ° C
Bending radius: 10 x d;
Bending times: greater than 10 million
Outer sheath color: Green (RAL 6018) Black (RAL 9005)
