1.Standards:
Manufacture according to BS 5308, BS EN 50288-7,,IEC 60502-1

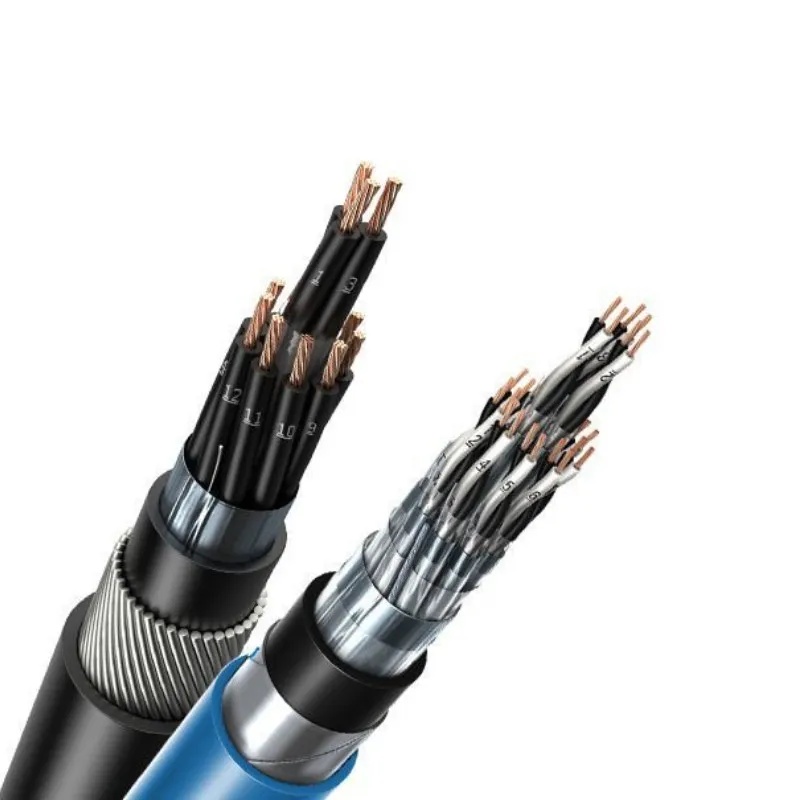

2. Cable structure:Structure:
2.1 Rated voltage: 300/500V, 600/1000V
2.2 Conductor: Copper wire /tinned-copper wire, Class1, Class2, Class5
2.3 Insulation: PVC /PE /XLPE
2.4 Cabling: Two or three cores stranded (Pair or Triple)
2.5 Individual shield (if required): Al-plastic tape with drain wire
2.6 Overall shield: Al-plastic tape with drain wire
2.7 Inner sheath (applicable if there is an armour layer): PVC/PE
2.8 Armour layer: Galvanized steel wire / Steel tape
2.9 Outersheath: PVC/PE/LSHF
2.10 Other characteristics: Oil resistant, Flame retardant, Anti-corrosion, UV,etc.


3.APPLICATION:
These cables are designed to connect electrical instrument circuits and provide communication services in and around process plants (e.g. petrochemical industry etc.). Suitable fordirect burial applications.

4.Physical and Thermal Properties
Conductor: Annealed copper solid Class 1 or plain copper stranded Class 2 or flexible soft stranded copper class 5
Voltage Rating: 300V/300v
Test Voltage:1200V
Temperature range During operation (fixed state): -30°C - +90°C
Temperature range During Installation (Mobile state): -5°C - +50°C
Minimum bending radius: 10 X Overall Diameter
