Application

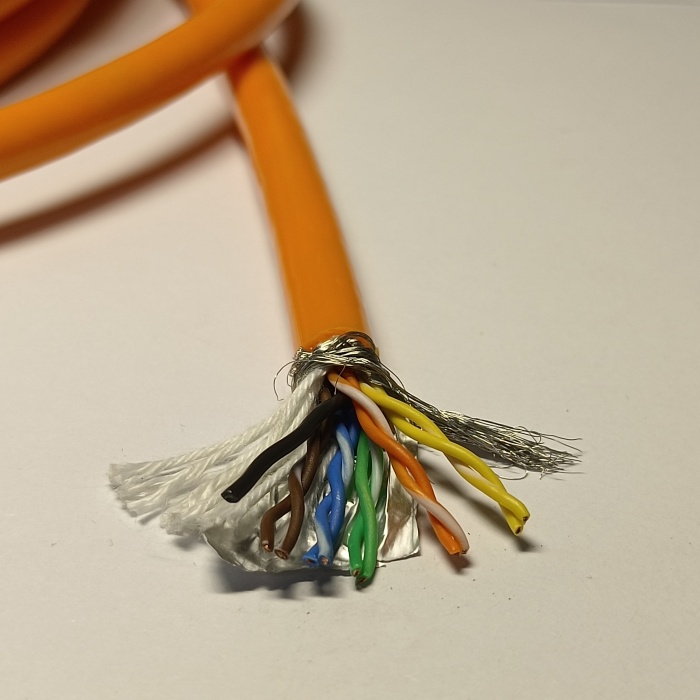

In the industrial application, sophisticated motions increasingly need high flexible cable that can be twisted. It requires copper
core, shielding and sheath material must withstand the extrusion force and radial pressure caused when cable bends and twists. PUR sheath material significantly protects the inside components from damage when the cable is twisted. This cable is suitable for
industrial robot, manipulator arm and other movable applications. As per testing results, the maximum torsion angle can be 270°and bending cycle is 3 million times.

Technical data
Rated voltage: 300/500V (Acc. to DIN VDE 0245)
Testing volatge: 2000V (Acc. to DIN VDE 0281-2)
Temperature range: -25ºC till +80ºC
Operating temperature: -25ºC till +80ºC
Bending radius: Fixed installation 4xOD, In motion 10xOD
Movable speed: 180°/S
Oil resistance: Yes (Acc. to DIN EN 50363-10-2)
