There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

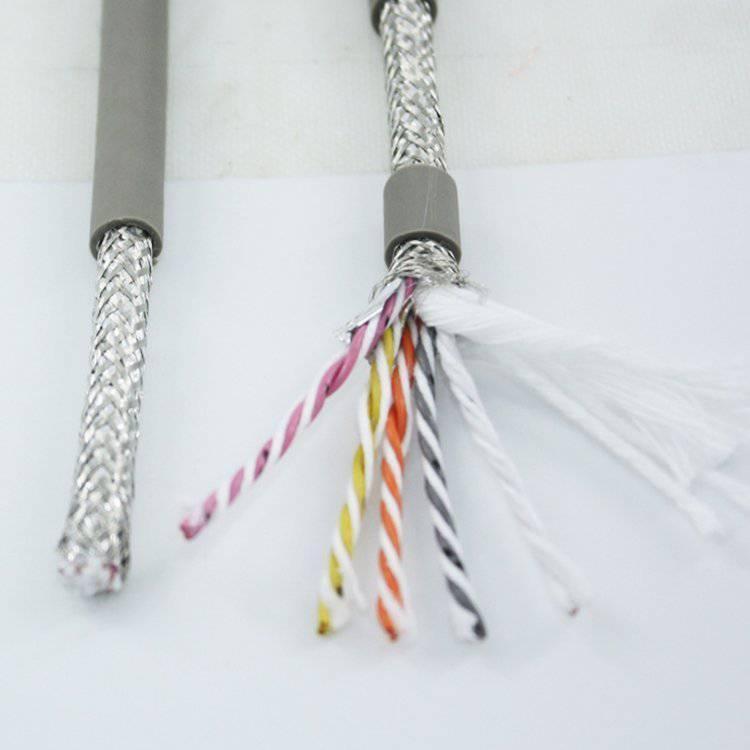

Cable structure:
Conductor: Multi strand ultra-fine precision twisted oxygen free copper wire, compliant with VDE0295CLASS 6 standard
Insulation: Special mixed PVC insulation
Color: Less than or equal to 0.5mm Color representation, brown, black, blue, purple, pink, orange
          Black numbers with white numbers greater than or equal to 0.5mm, with 3 or more cores and yellow green grounding wires (yellow green optional)
Inner sheath: modified with low viscosity and strong extrusion inner sheath, made of PVC material, oil resistant
Shielding: Tin plated copper mesh braided shielding, with a density of over 80%
Sheath: Special modified PVC sheath
          Orange (RAL2003) Black (RAL9005) or Grey (RAL7001)
Rated voltage: greater than or equal to 0.5mm: 300/500V; Less than 0.5mm: 300/300V
Test voltage: 2500V
Temperature range for use: Fixed installation: -30 ° C to+90 ° C
                      Mobile installation: -5 degrees to+90 degrees
Minimum bending radius: Fixed installation: 5 times the outer diameter of the cable;
                      Mobile installation: When the travel is less than 10 meters, the bending radius is 8 times the outer diameter of the cable
                      When the travel distance is greater than 10 meters, the bending radius is 10 times the outer diameter of the cable
Product features:
Waterproof, oil resistant, cold resistant, UV resistant, wear-resistant, flame-retardant, bending resistant, suitable for mobile applications
The maximum temperature for normal use of conductors is 70 ℃, and the maximum temperature for sheaths is 80 ℃;   If customized, it can be higher
