There are many types of cables, and the website cannot display all of them. We have most cables in stock, and special cables can be customized. If you have any cable needs, please contact us.

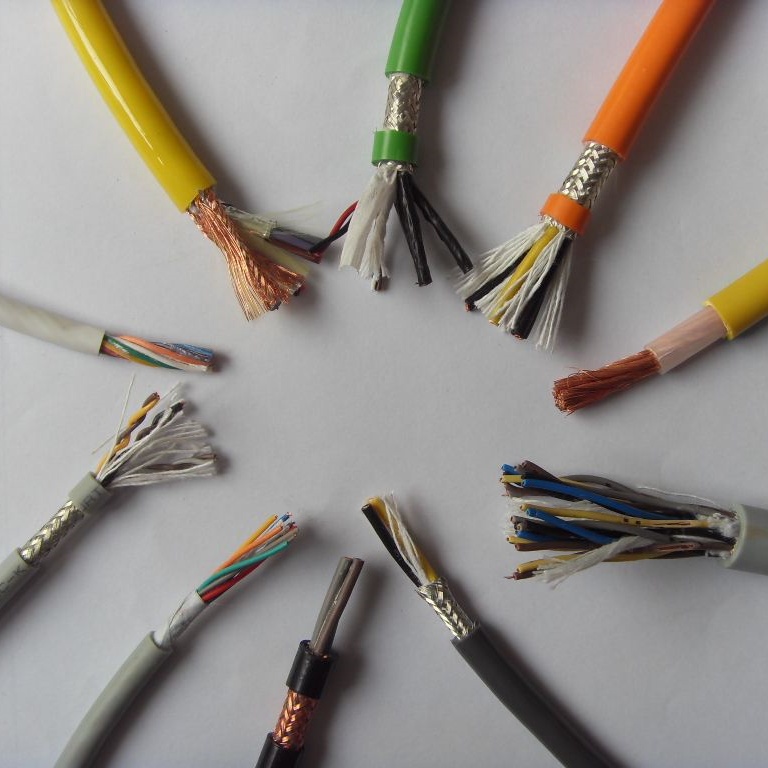

Cable structure:
Conductor: Multi strand ultra-fine precision twisted oxygen free copper wire, compliant with VDE0295CLASS 6 standard
Insulation: Special mixed PVC insulation
Color: Less than or equal to 0.5mm Color representation, brown, black, blue, purple, pink, orange
          Black numbers with white numbers greater than or equal to 0.5mm, with 3 or more cores and yellow green grounding wires (yellow green optional)
Sheath: special PUR
          Black (RAL9005) or Grey (RAL7001)
Rated voltage: greater than or equal to 0.5mm: 300/500V; Less than 0.5mm: 300/300V
Test voltage: 2000V
Temperature range for use: Fixed installation: -50 ° C to+90 ° C
                      Mobile installation: -30 degrees to+90 degrees
Minimum bending radius: Fixed installation: 5 times the outer diameter of the cable;
              Mobile installation: When the travel is less than 10 meters, the bending radius is 8 times the outer diameter of the cable
              When the travel distance is greater than 10 meters, the bending radius is 10 times the outer diameter of the cable
Product features:
Waterproof, oil resistant, UV resistant, wear-resistant, flame-retardant, and bending resistant
Application scope:
Suitable for installation in dry or humid indoor environments, free continuous reciprocating motion without strong stress relief or forced guidance, especially in industrial environments with frequent bending, such as woodworking machinery, machine tool processing equipment, logistics conveying systems, crane machinery, etc
