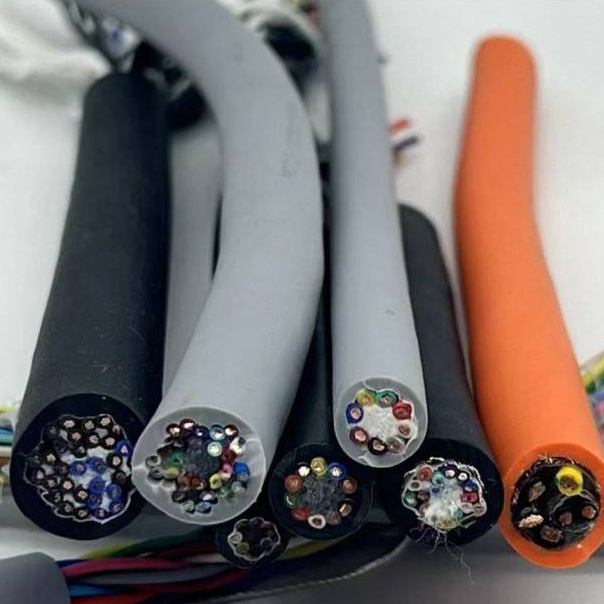

Cable structure:
Conductor: Multi strand ultra-fine precision twisted oxygen free copper wire, compliant with VDE0295CLASS 6 standard
Insulation: Special mixed PVC insulation
Color: Less than or equal to 0.5mm Color representation, brown, black, blue, purple, pink, orange
          Black numbers with white numbers greater than or equal to 0.5mm, with 3 or more cores and yellow green grounding wires (yellow green optional)
Inner sheath: modified with low viscosity and strong extrusion inner sheath, made of PUR material, oil resistant
Shielding: Tin plated copper mesh braided shielding, with a density of over 80%
Sheath: Special modified PUR sheath
        Orange (RAL2003) Black (RAL9005) or Grey (RAL7001)
Rated voltage: greater than or equal to 0.5mm: 300/500V; Less than 0.5mm: 300/300V
Test voltage: 2000V
Temperature range for use: Fixed installation: -50 ° C to+90 ° C
                      Mobile installation: -30 degrees to+90 degrees
Minimum bending radius: Fixed installation: 5 times the outer diameter of the cable;
                      Mobile installation: When the travel is less than 10 meters, the bending radius is 8 times the outer diameter of the cable
                      When the travel distance is greater than 10 meters, the bending radius is 10 times the outer diameter of the cable
Product features:
Waterproof, oil resistant, UV resistant, wear-resistant, flame-retardant, bending resistant, suitable for fast moving situations



Application scope:
Suitable for installation in dry or humid indoor environments, free continuous reciprocating motion without strong stress relief or forced guidance, especially in industrial environments with frequent bending, such as woodworking machinery, machine tool processing equipment, logistics conveying systems, crane joints, etc. It is used in large stroke situations and has good electromagnetic shielding and anti-interference properties
