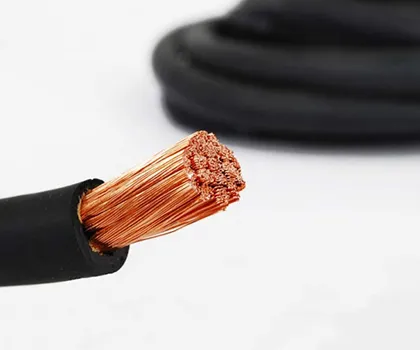

Welding Cable Structure:

1.Conductor: Stranded plain or tinned, annealed copper wires, or CCA Copper cladded aluminum

2.Covering: Material: EPR, TPE or CPE

Single Layer, or double layers


Welding Cables Designations

1. HO1N2-D: for cables with normal flexibility

2.. HO1N2-E: for cables with extra high flexibility

Welding Cable Characteristics:

high elasticity, aging resistance & oil resistance

Welding Cable Application:

It's used in the automobile industry in shipbuilding, in transport and conveyor system, tool making machinery,

welding robots etc.

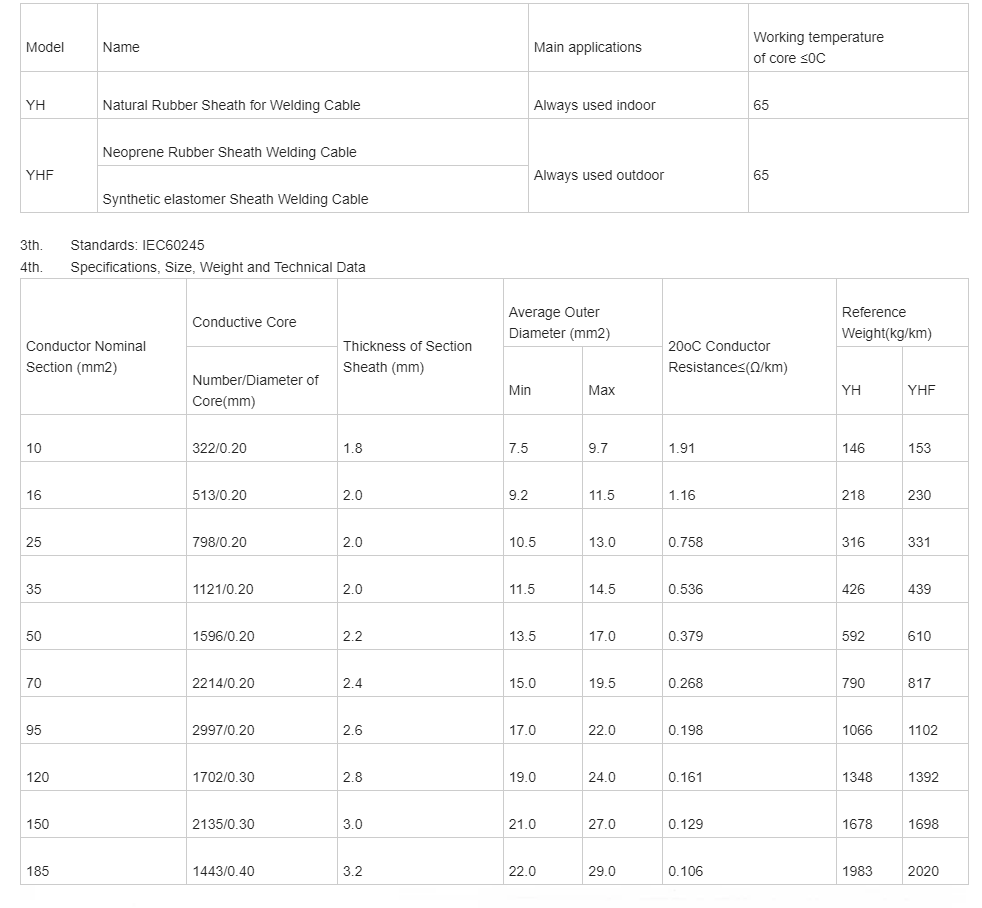

Technical data
Voltage Rating
100V
Working temperature:65ºC

Temperature Rating
Fixed: -40°C to +85°C
Flexed: -20°C to +85°C
Minimum Bending Radius
Flexed: 6 x overall diameter
