APPLICATION

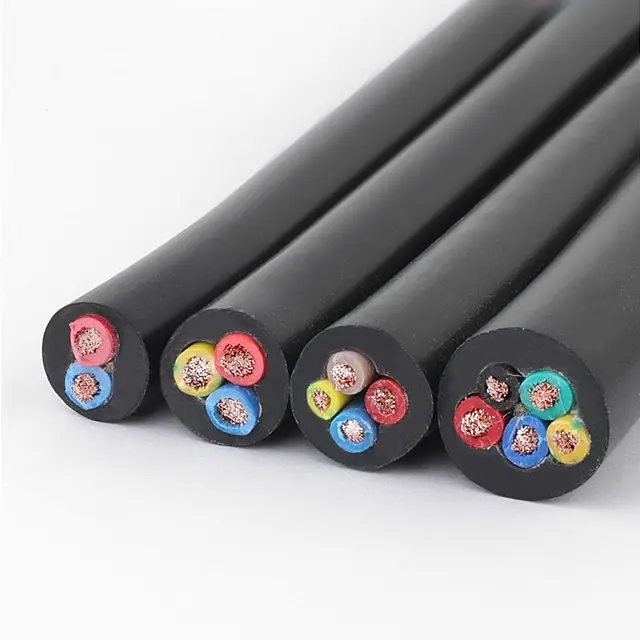

TYPE SOOW Cable is for use in heavy-duty industrial applications where flexibility and durability is required. SOOW is designed for extra hard usage on industrial equipment, heavy tools, motor and welding leads, power extensions, portable machinery, sound equipment, portable stage lights, marine dockside power and mining applications. Constructed of color-coded synthetic oil, ozone and water resistant rubber (EPDM) insulation and an oil resistant thermoset chlorinated polyethylene (CPE) jacket, SOOW is rated for indoor/outdoor use.

SOOW flexible rubber cords carry a 600 volt rating. They are also manufactured as a 300 volt rated Junior Service cord designated as SJOOW. Using the key, a SJOOW cord is a 300 volt (junior service) elastomer plastic oil resistant inner and outer jacket portable cord.

Applications

• Portable tools
  Industrial and processing equipment
  Construction equipment
  Cranes and hoists
  Track systems
  Battery chargers
  Portable appliances
  Small motors and associated machinery
  Electrical equipment exposed to oils, solvents, flame, or moisture

STANDARDS & REFERENCES
Type SOOW Cords/Cable meets or exceeds the applicable requirements of the following standards and
specifications:

UL Standard 62 for Flexible Cords
CSA Standard 22.2 No. 49 for Flexible Cords
MSHA flame resistance for mining applications
NEC Article 400
RoHS Compliant

SOOW offers:
    • Excellent resistance to oils, acids, chemicals, water, ozone, extreme
      temperatures, cuts, tears and abrasion
    • Sunlight resistant
    • Flame retardant
    • Indoor/outdoor rated
    • Highly flexible
    • Maximum continuous conductor temperature: 90°C DRY

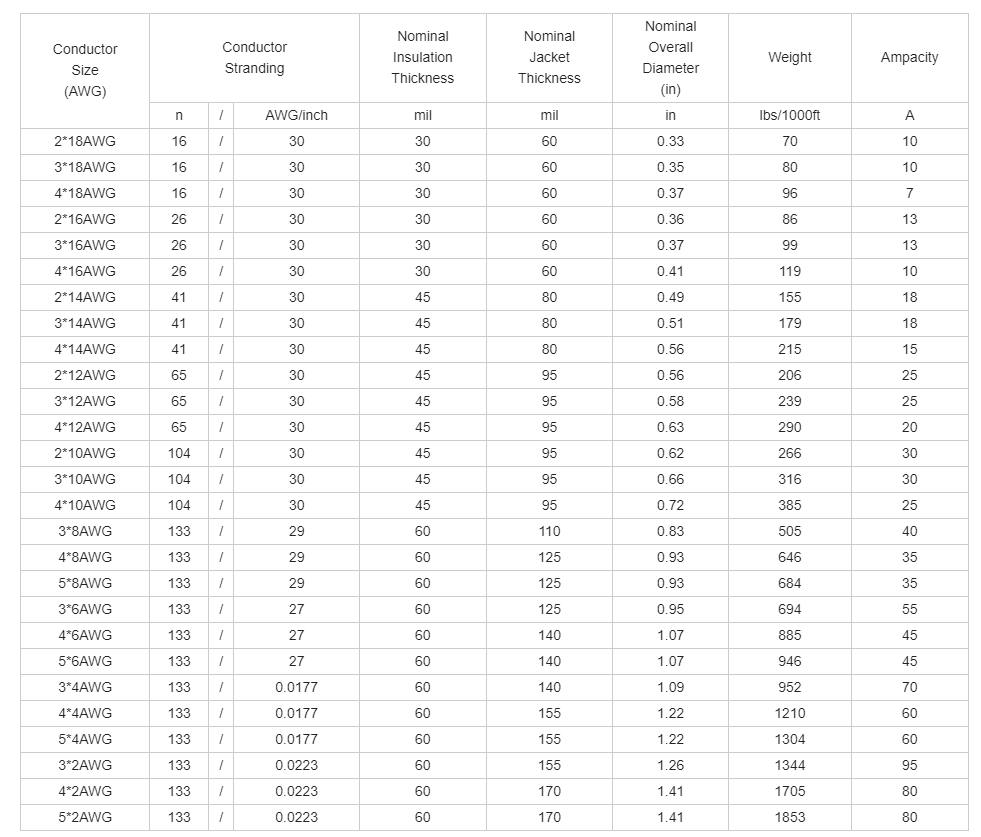

CONSTRUCTION
Conductors: Bare, annealed copper per ASTM B-3 Flexible, bunch-stranded per UL-62
Separator: A paper tape is applied between the conductor and insulation to facilitate stripping.
Insulation: Color coded synthetic rubber (EPDM) oil and water resistant per UL-62
Jacket: Black Chlorinated Polyethylene (CPE)
Cabling: Conductors are assembled round with fillers as needed.
Temperature Range: -40°C to +90°C
Voltage Rating: 600 Volts for SOOW,300 Volts for SJOOW
